低電容TVS管ESD靜電抑制器RClamp0502B平替DL0502S5

 2 通道 25 V 1pF 表面貼裝 單向/雙向 TVS ESD/CDE 保護 -SC-75 25V Clamp 5A (8/20μs) Ipp Tvs Diode Surface Mount SC-75 (SOT523)

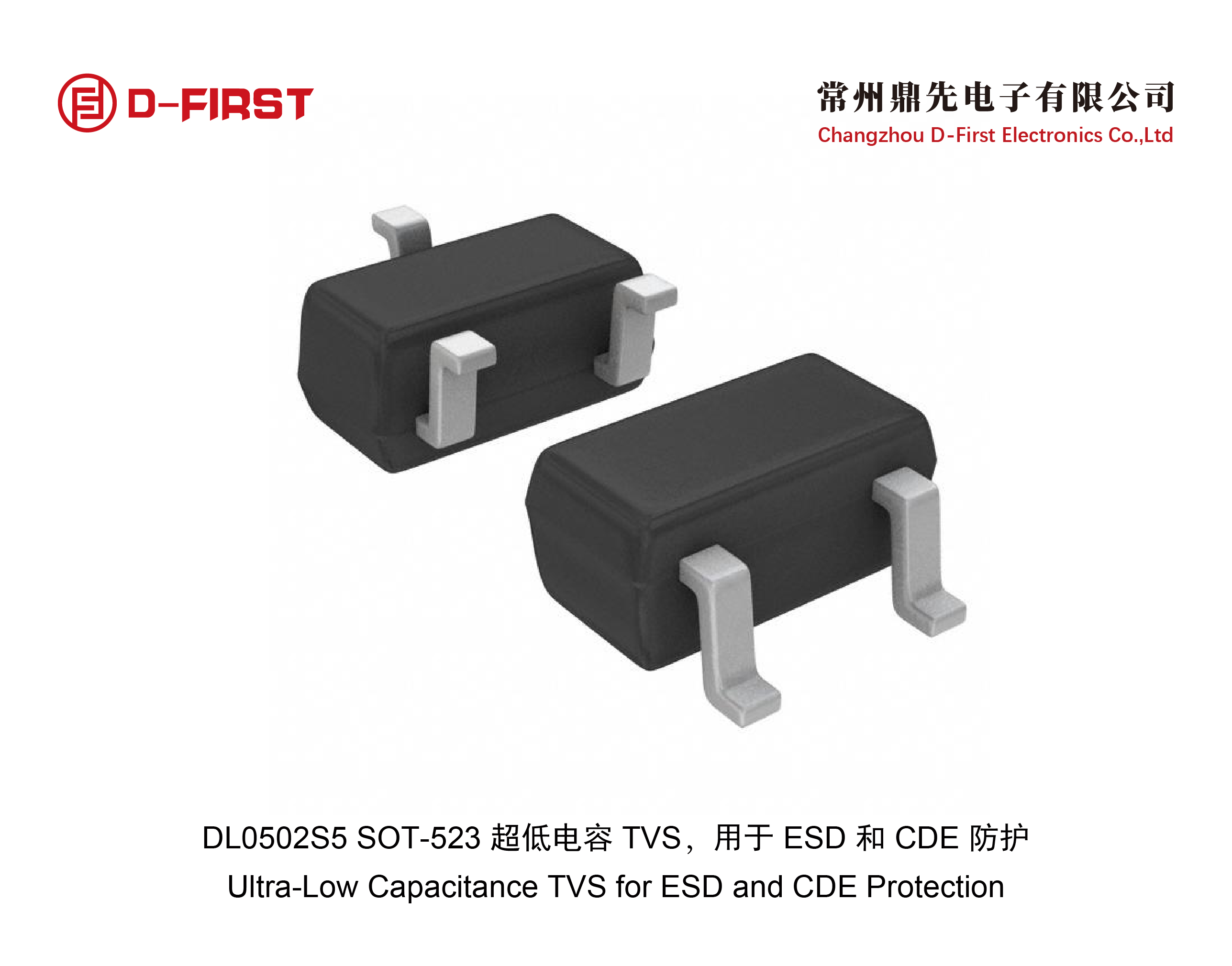

 DL0502S5低容TVS，用于 ESD和CDE防護 SOT-523封裝

ESD Suppressors / TVS Diodes

2-LINE 5V SC75 RClamp0502B Ultra-Low Capacitance TVS for ESD and CDE Protection

功能

峰值脈沖功率Peak pulse power (tp = 8/20μs): 80W

峰值脈沖電流Peak pulse current (tp = 8/20μs): 5A

靜電能力測試

· IEC 61000-4-2 (ESD) ±15kV（空氣），±8kV（接觸）

· IEC 61000-4-4 (EFT) 40A (5/50ns)

工作電壓Reverse Stand-off Voltage: 5V

擊穿電壓Reverse Breakdown Voltage (Min.): 6V

漏電流Reverse Leakage Current: 0.5uA

鉗位電壓Clamping Voltage ( IPP=4A tp=8/20us ): 13V

結電容Junction Capacitance (VR=0V, f = 1MHz Between I/O pins): 0.6pF

固態硅雪崩技術

封裝Package: SOT-523
